John Guest® O.D. Red PE Tubing - 1,000 FT PE08-BI-0500F-R-1/4

John Guest® O.D. Red PE Tubing - 1,000 FT PE08-BI-0500F-R-1/4"

Regular price $90.00 Sale

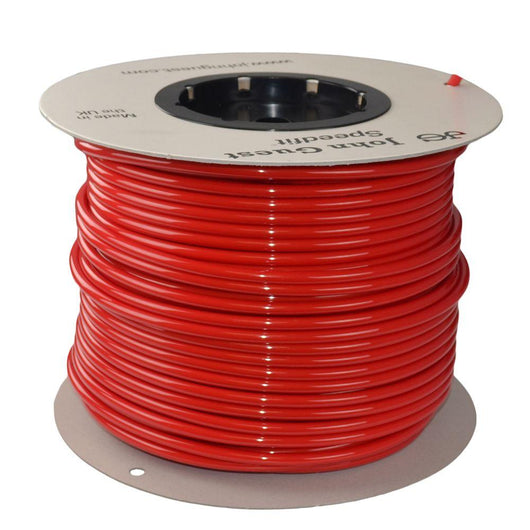

John Guest® Red O.D. PE Tubing - PE08-BI-0500F-R-1/4" - 1,000 FT

John Guest® Tubing is designed for use with JG Push-in Fittings, John Guest® Shut-Off Valves and virtually all standard tubing connectors.

These PE tubes are sold per box of 2 of 500 FT each spool =1,000FT of Tubing.

Buy in bulk and save!


ACCREDITATION

Accepted by almost all the world’s beer and beverage producers and by the manufacturers of drinks dispense equipment, John Guest products have quality and performance approvals from leading testing and acceptance authorities.

 Food Award WRAS



TECHNICAL SPECIFICATIONS


Working Pressure and Temperature Range

Super Speedfit fittings are suitable for the following pressures and temperatures.

Temp.

Pressure

5/32″ – 5/16″
4mm – 8mm

3/8″- 1/2″
10mm – 22mm

Air
-20°C  16 Bar 10 Bar
Potable Liquids and Air
+1°C  16 Bar  10 Bar
 +20°C  16 Bar  10 Bar
 +65°C  10 Bar   7 Bar


Also suitable for vacuum

Depending on the tube used, under certain conditions fittings may be used at higher pressures and temperatures. Please refer to our Customer Services Department for guidance. Note 1 Bar = 14.5 PSIG.

TUBE TYPES

Plastic Tube – Polyethylene, nylon and polyurethane conforming to the tolerances shown below. For soft tubing or thin wall tube we recommend the use of tube inserts.

Braided Tube – Use of Tube to Hose Stems listed on pages 11, 16, 18, 21 and 26 is essential when using tube. Use of clamps to retain braided tube on barbs is recommended.

Metal Tube (soft) – Brass, copper or mild steel conforming to the tolerances below.

Metal Tube (hard) – We do not recommend Super Speedfit fittings for hard metal or chromium plated tubes.

For stainless steel and other polished metal tubes we recommend the use of Superseal fittings. These are shown on page 9 of this brochure.
It is essential that outside diameters be free from score marks and that the tube be deburred before inserting the fitting.

TUBE TOLERANCES

Super Speedfit fittings are offered for tubes with outside diameters to the following tolerances.

Size (inches)

 5/32 – 3/16

 1/4 – 1/2

Tolerance (inches)

+0.001 / -0.003

+0.001 / -0.004

Size (mm)

 4mm – 5mm  6mm – 2mm

Tolerance (mm)

+0.05 / -0.07

+0.05 / -0.10



INSTALLATION AND SYSTEM TESTING

Fittings and tubes should be kept clean and undamaged before use.
All tube and fittings installations must be pressure tested after installation to ensure system integrity before handing over to the final user. See also “How to make a connection”.

1/4 Turn Valves

These valves have been designed to allow temporary servicing of downstream equipment and must only be used in the fully open or fully closed position.
DO NOT USE THESE VALVES: In a partially open position to control flow; to provide a permanent termination; without tubing assembled or plugged (or threaded connections sealed, or as a tap or “faucet”.

Chemicals

For use with chemicals or other potentially aggressive liquids, please refer to our Customer Services Department. In general, use only water or oil-based paint. DO NOT ALLOW CONTACT WITH Cellulose-based paint, paint thinners or strippers, solder flux or aggressive cleaners (see Cleaners and Sanitising). Keep away from ozone generators such as electric motors, mercury vapor lamps and high voltage electrical equipment.
Super Speedfit fittings are not recommended for use with explosive gases, petroleum spirits, and other fuels or for central heating systems.

Collet Covers

Are available as additional security against the removal of the tube or to provide a simple means of color-coding. The cover is offered in a range of six colors. Please see page 26 of this brochure.

Food Quality

NSF standard 51 listed fittings in this brochure are produced in the Food and Drug Administration (FDA) compliant materials and are therefore recommended for food quality applications. The majority of fitting in this catalog are also supported by a John Guest declaration of compliance to European Regulation (EC) no.1935/2004

Maximum Torque Values for Plastic Threads BSP, BSPT & NPT.

Plastic threads are not generally as strong as brass threads. Customers and end-users should be aware of this when choosing products for their applications. Overtightening of plastic threads will cause undue stress and eventual cracking and leakage. The maximum torque figures for BSP and BSPT threads used on John Guest fittings in mating threads conforming to the relevant BS or International thread standards are shown below.

  Threads

1/8 – 1/4

3/8 – 1/2

3/4

Max.Torque

1.5Nm

3.0Nm

4.0Nm








John Guest recommends OEM customers to consider replacing threaded ports with the more modern Cartridge Systems.
It is recommended that all installations are checked prior to use to determine that a seal has been made.

MAINTENANCE AND REPLACEMENT INTERVALS

John Guest products generally require little maintenance but as a minimum, we recommend a routine visual inspection. The frequency of visual inspection will depend on severity of the application and risk of failure. If after visual inspection John Guest products appear damaged, cracked, charred, discolored, heat distorted or corroded they should be replaced. Any product that is or appears to be leaking should be replaced.
Product life is affected by the severity of the application, the hostility of the working environment and contact with aggressive chemicals or liquids. It is therefore important that specific replacement intervals be considered by specifiers/users/customers based on previous service life or when failure could result in unacceptable downtime, damage or injury risk.

CLEANERS AND SANITIZING OF FITTINGS

The external surfaces of John Guest products must not come into contact with oxidizing or acidic cleaners and sanitizing agents, for example (but not limited to) those below pH 4, high in sodium hypochlorite level (bleach) or containing hydrogen peroxide. Our plastic material suppliers recommend ECOLAB Oasis 133 as a suitable cleaner for the external surfaces of products manufactured by John Guest. Several different methods exist for sanitizing the internal surfaces of fluid systems, including sodium hypochlorite, hydrogen peroxide, chlorine dioxide or ozone. It is entirely the responsibility of the end-user to determine if the chosen method is suitable for use with John Guest products over the planned working life of the system. However, to avoid unnecessary early failure, John Guest requires that the disinfection solution must be immediately flushed out at all draw-off points with fresh, wholesome water at the end of the disinfection period. The solution must not be left in the system. Disinfection solutions must only come into contact with the internal (fluid-carrying) surfaces of the system. If any other surfaces of a fitting come into contact with disinfection solution the whole fitting must be replaced immediately. Polypropylene fittings offer greater resistance to aggressive chemicals than Acetal fittings but do not have the same mechanical properties. John Guest polypropylene fittings are generally designated by the part number prefix PP or PPM.

SIDE LOADS

John Guest products are not designed to be used whilst under side load as this may adversely affect their ability to function long-term. Always ensure tubes have good alignment with the fitting. They must also not be subjected to any form of impact or other damage, such as being hit or dropped, even accidentally. If fittings have damaged or suffered an impact, they should be replaced immediately. John Guest warranty does not cover loss caused by any form of damage.

WARRANTY

Whilst we give a warranty against defects in manufacture or materials, it is the responsibility of the specifier to ensure that fittings and related products are suitable for their application. The installation must be carried out correctly in accordance with our recommendations, complying with recognized codes of practice and relevant national standards, and be properly maintained. Please refer to our terms and conditions of sale.

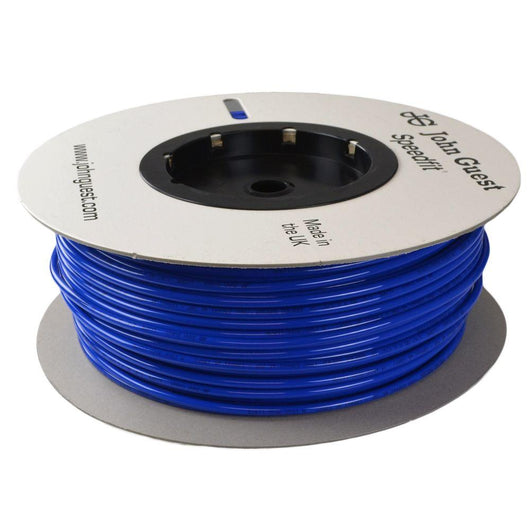

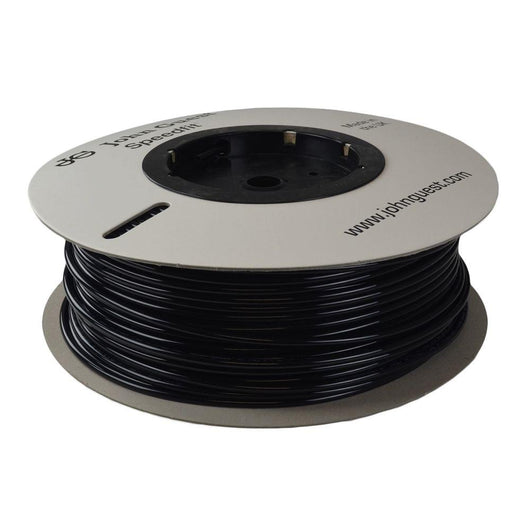

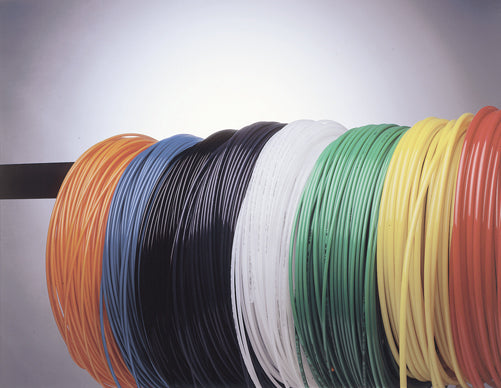

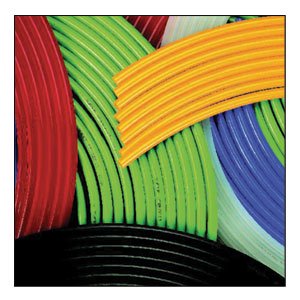

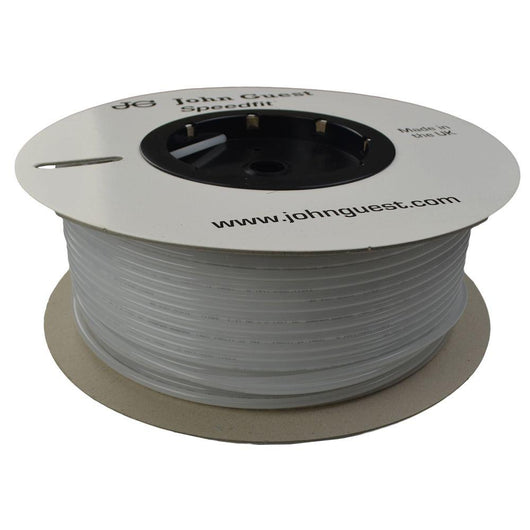

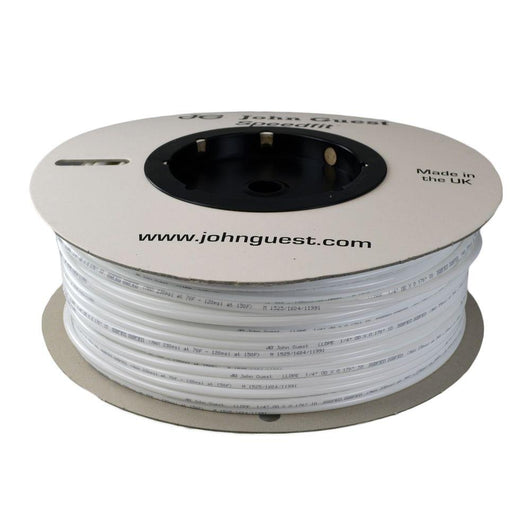

  • Available in 1/4 in. O.D. in natural, white, blue, black and red
  • Manufactured with FDA approved materials
  • Durable, flexible, odorless, tasteless, and non-toxic
